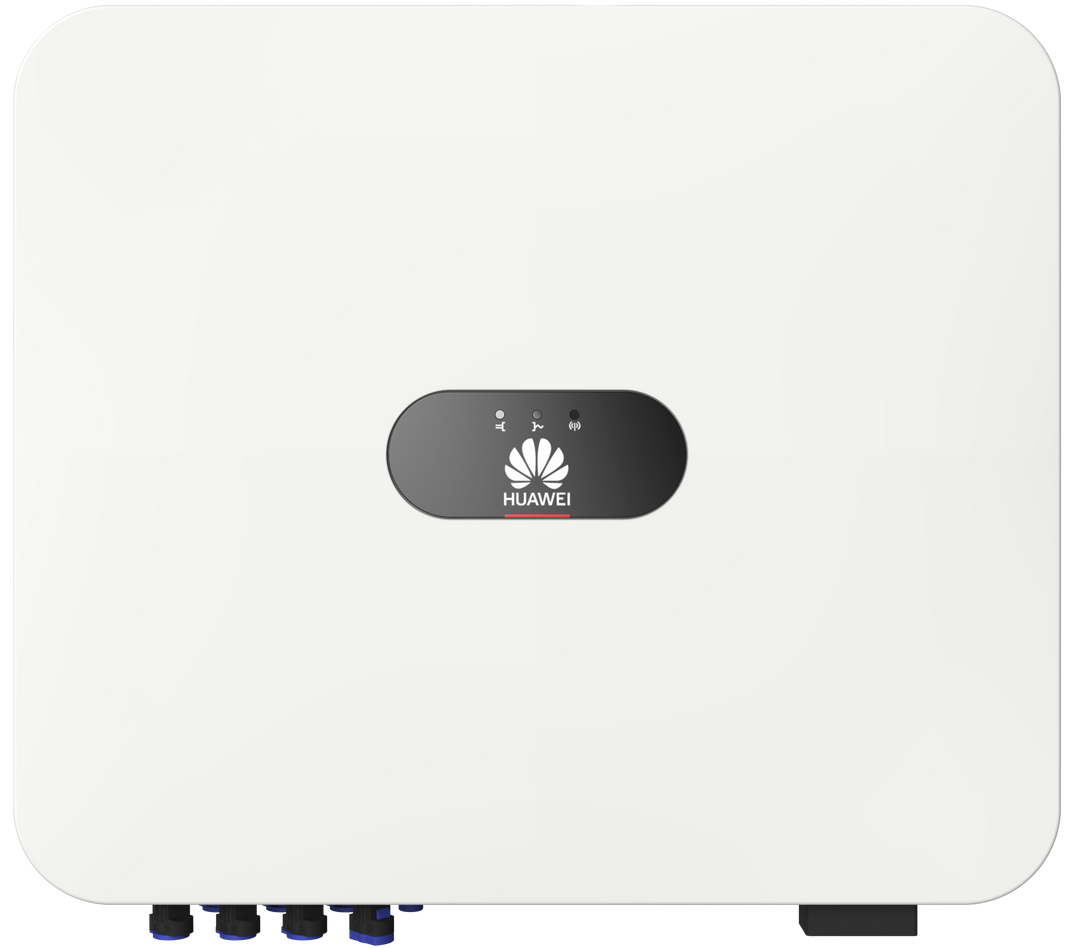

HUAWEI Wechselrichter SUN2000-8K-LC0 Smart Energy Controller
Artikel-Nr.: 10442
- Auf Lager
General data
Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0 % RH~100 % RH
Operating altitude: 0 - 4,000 m (derating > 2.000 m)
Cooling: Natural convection
Display: LED displays; integrated WLAN + FusionSolar App
Communication: RS485; WLAN/ Ethernet via Smart Dongle-WLAN-FE (optional), 4G / 3G / 2G via Smart Dongle-4G (optional); EMMA (optional)
Weight (incl. mounting bracket): 14.5 kg
Dimensions (incl. mounting bracket): 425 x 376.5 x 150 mm
Protection class: IP66
Input DC
Recommended maximum PV power: 12,000 Wp
Max. input voltage: 600 V Input voltage: 600 V
Operating voltage range: 40 V ~ 560 V
Starting voltage: 50 V
Rated input voltage: 360 V
Max. Input current per MPPT: 16 A
Max. Short-circuit current: 20 A
Number of MPP trackers: 3
Max. Max. number of inputs per MPPT: 1
Output AC
Mains connection: Single-phase
Nominal power: 8,000 W
Maximum apparent power: 8,800 VA
Nominal output voltage: 220 Vac / 230 Vac / 240 Vac, L / N + PE
AC mains frequency: 50 Hz / 60 Hz
Adjustable power factor: 0.8 kap. ... 0.8 ind.
Total harmonic distortion (THD): ≤ 3%
Efficiency
Max. Efficiency: 98.1 %
European efficiency: 97.5 %
Protective devices
Anti-islanding protection: Yes
DC reverse polarity protection: Yes
Insulation monitoring: Yes
DC overvoltage protection: Yes, compatible with protection class TYPE II according to EN/IEC 61643-11
AC overvoltage protection: Yes, compatible with protection class TYPE II according to EN/IEC 61643-11
Residual current monitoring unit: Yes
AC overcurrent protection: Yes
AC short-circuit protection: Yes
AC overvoltage protection: Yes
Overheating protection: Yes
Arc fault protection: Yes
Battery charging from the mains: Yes
Backup power (Yes, via Smart Guard-63A-S0)
Module optimizer
SUN2000-450W-P2, SUN2000-600W-P
Standards and safety
EN/IEC 62109-1, EN/IEC 62109-2
Mains connection conditions
IEC61727, IEC62116, IEC61683, EN50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/ IRR-TIC, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244 (UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11.
Further information on conformity to standards is available on request.
included in the scope of delivery
PV Connector
AC Connector
Signal Cable Connector
Bracket
